9BB 30W 12V Solar Panel High-Efficiency Monocrystalline PV Module Designed for Off Grid System, Your Battery of RV, Boat, Camper, Trailer, Gate Opener 30W Solar Panel

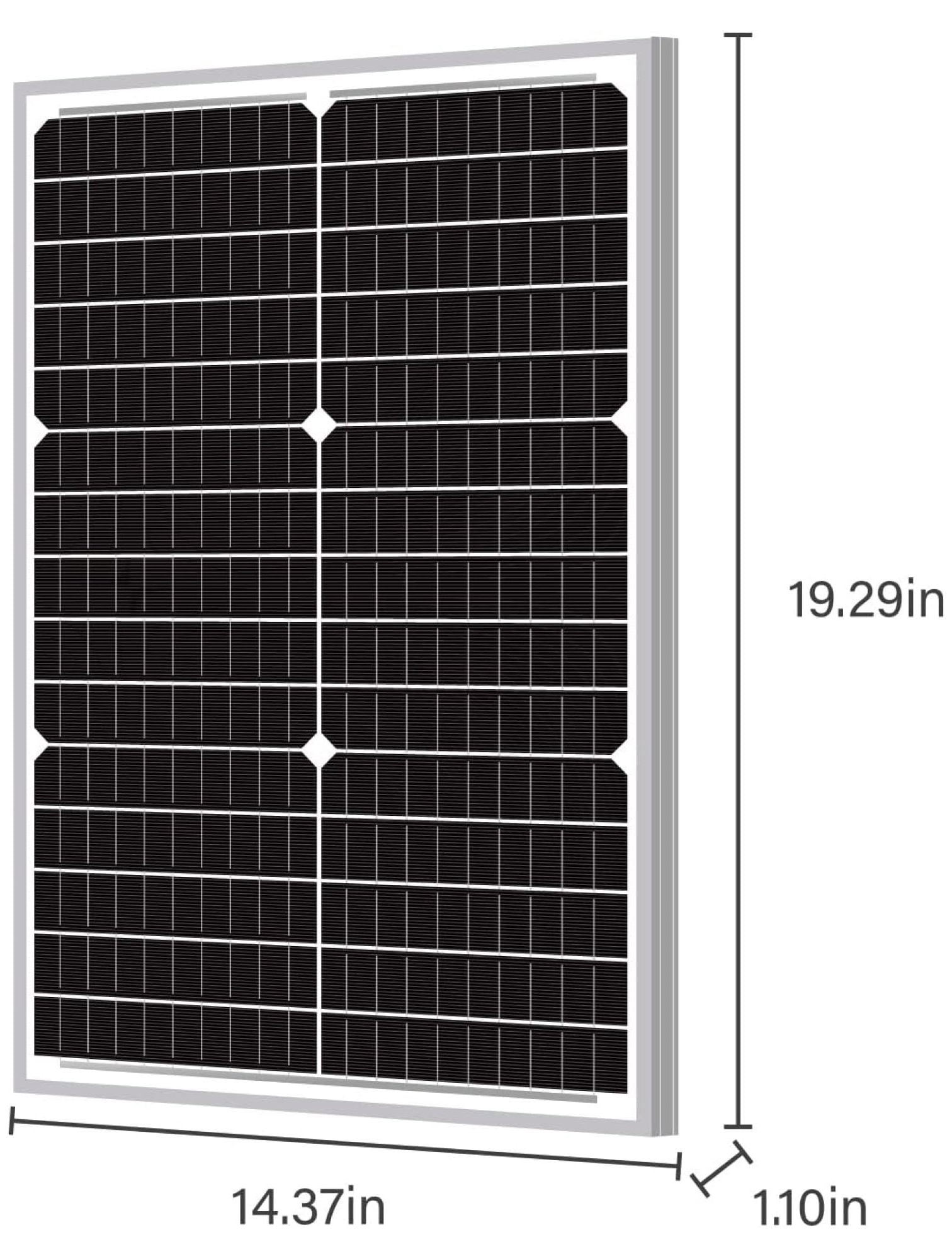

Key Features Easy Installine The panel comes with four easy mounting holes with four diameter 6.5 mm mounting holes, and two diameter 5mm grounding holesWith preattached 3ft wire with bare endsCompatible with zbracket, tilt adjustable mount, and polewall bracket, the panel can be installed for various applications Durable Heavyduty anodized frame with predrilled holes for mountingRugged design to withstand high winds (2400Pa), hail, and snow load (5400Pa)Durable TPT back sheet dissipates heat to insure better panel performance and lifespan Versatile Supported by a number of mounting , the panel can adapt flat surface mounts (Zbracket, tilt adjustable bracket) and polewall installationDespite the smaller wattage output, the panel can be used for many applications such as gate openers, security system, solar lighting, electric fences, battery maintainer, etc. Specification Dimension 19.2914.371.10 inchesWeight 4.78 lbsMax Power Output(W) 30WVoltage MPP Vmp(V) 17.37VCurrent MPP Imp(A) 1.73AVoltage Open Circuit Voc(V) 20.04VShort Circuit Current Isc(A) 1.83A FAQ 1 Does a Solar Panel produce full power? A In most cases, it is normal for a solar panel to not be able to provide its full nominal power. Factors affecting the performance of solar panels Sun Hours Sunlight Angle Operating Temperature Installation Angle Panel Shading Adjacent Buildings Etc... 2 How to test a solar panel? A The ideal conditions Test in the noon, under a clear sky, panels should be at 25 degrees tilted towards the sun, and the battery is at a low stateless than 40% SOC. Disconnect the solar panel from any other loads, using a multimeter to test the panel's current and voltage. 3 How does temperature affect solar panel efficiency? A Solar panels are generally tested at about 77F25C and are rated to perform at efficiency between 59F15C and 95F35C. Temperature going up or down will change the efficiency of the panels. For example, if the temperature coefficient of power is 0.5%, then the panel power will be reduced by 0.5% for every 50F10C . 4 How to install our solar panels using different brackets? A There are mounting holes on the panel frame for easy installation using a variety of brackets. Most compatible with 's Zmount, tiltadjustable mount, and polewall mount, making panel mounting suitable for a variety of applications. 5 Can I connect different solar panels ? A Though mixing different solar panels is not recommended, the mismatch can be achievable as long as each panels electrical parameters (voltage, current, wattage) are carefully considered.

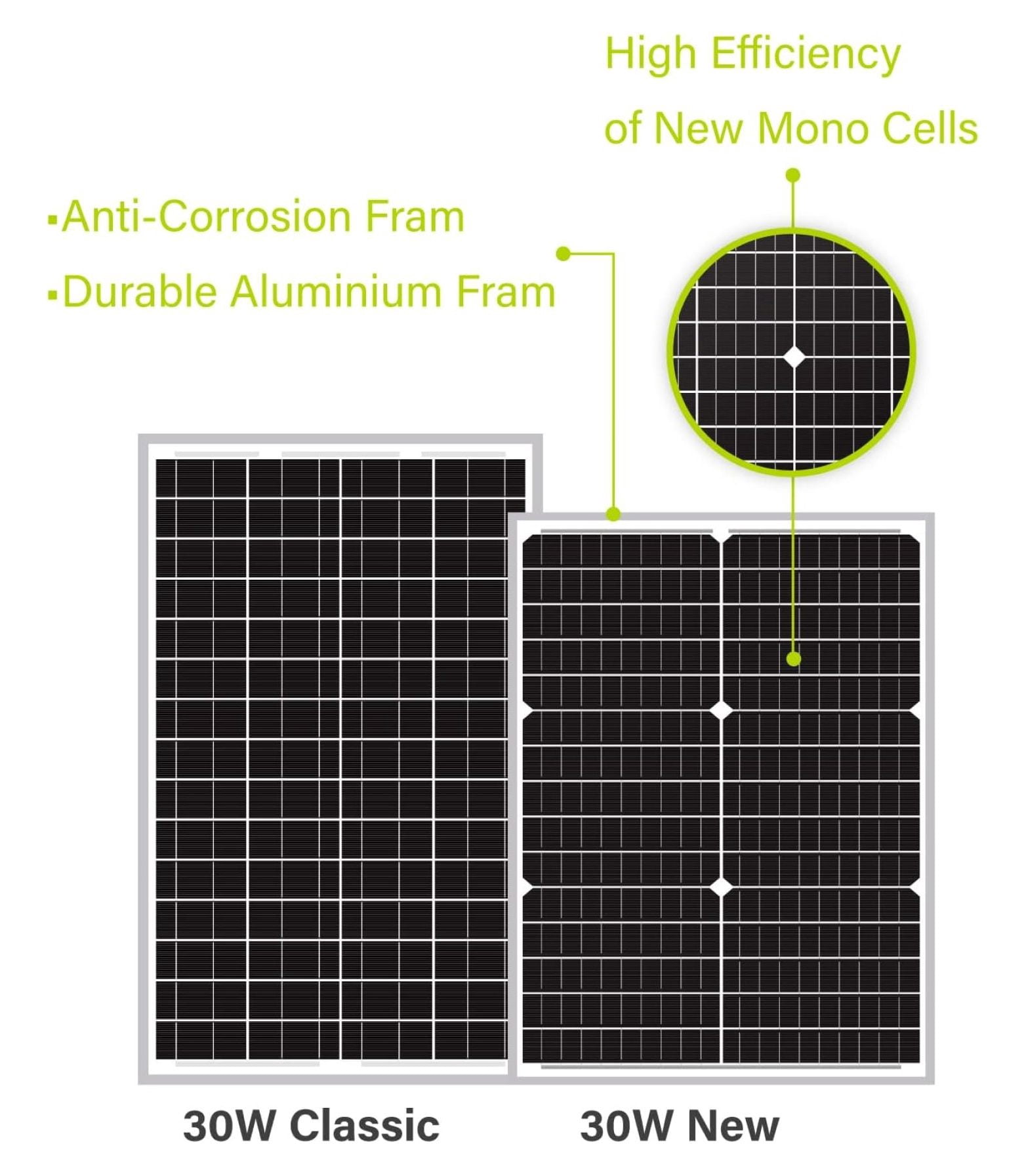

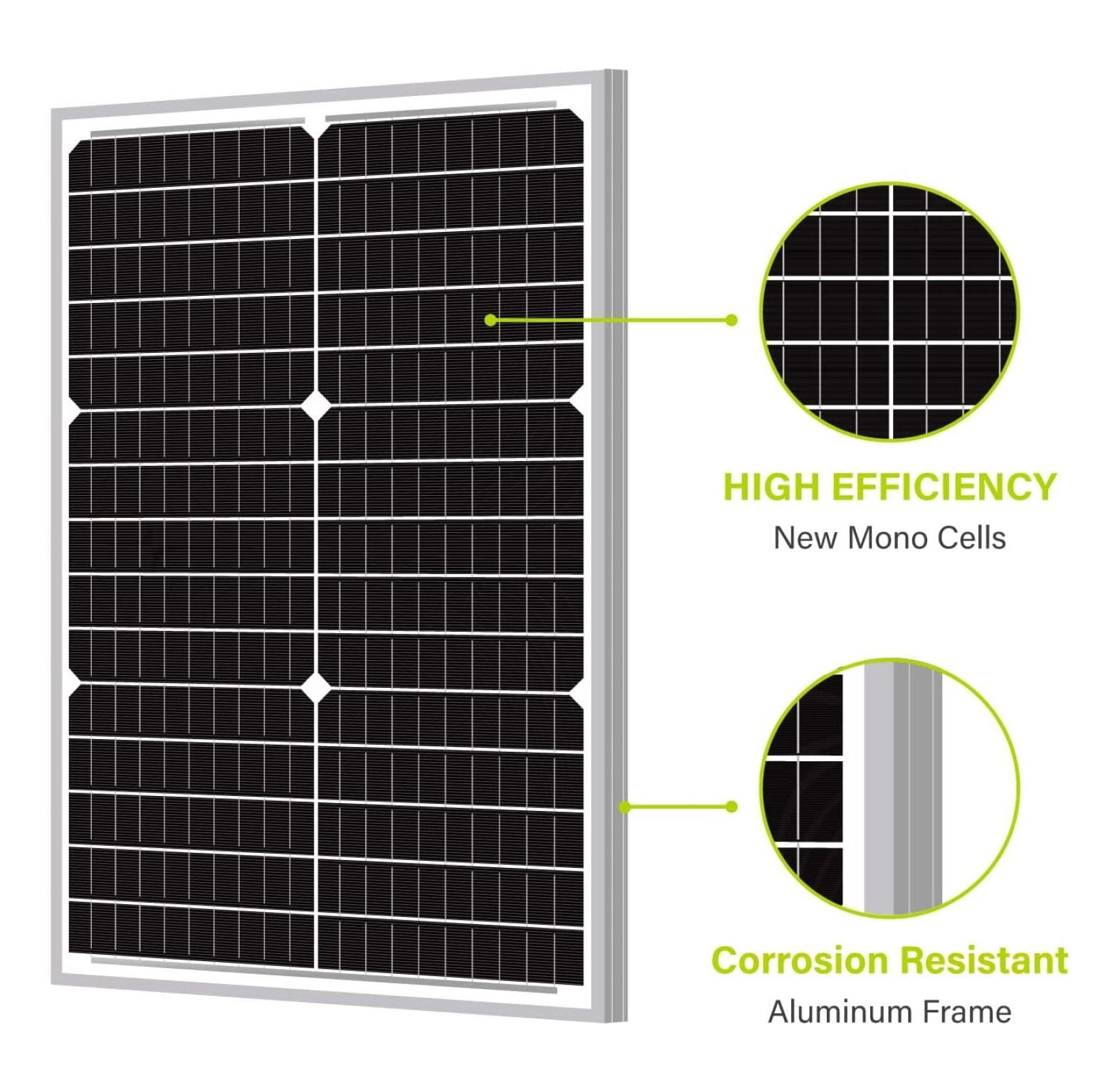

• 【New Design】High-performance 166mm mono cells encapsulated in ensure excellent conversion rate up to 21-23%. Imp: 1.73A Vmp: 17.37V.
• 【IP67 Waterproof】Weather proof high efficiency solar panel and waterproof controller allows you can use this solar kit both inside and outside.

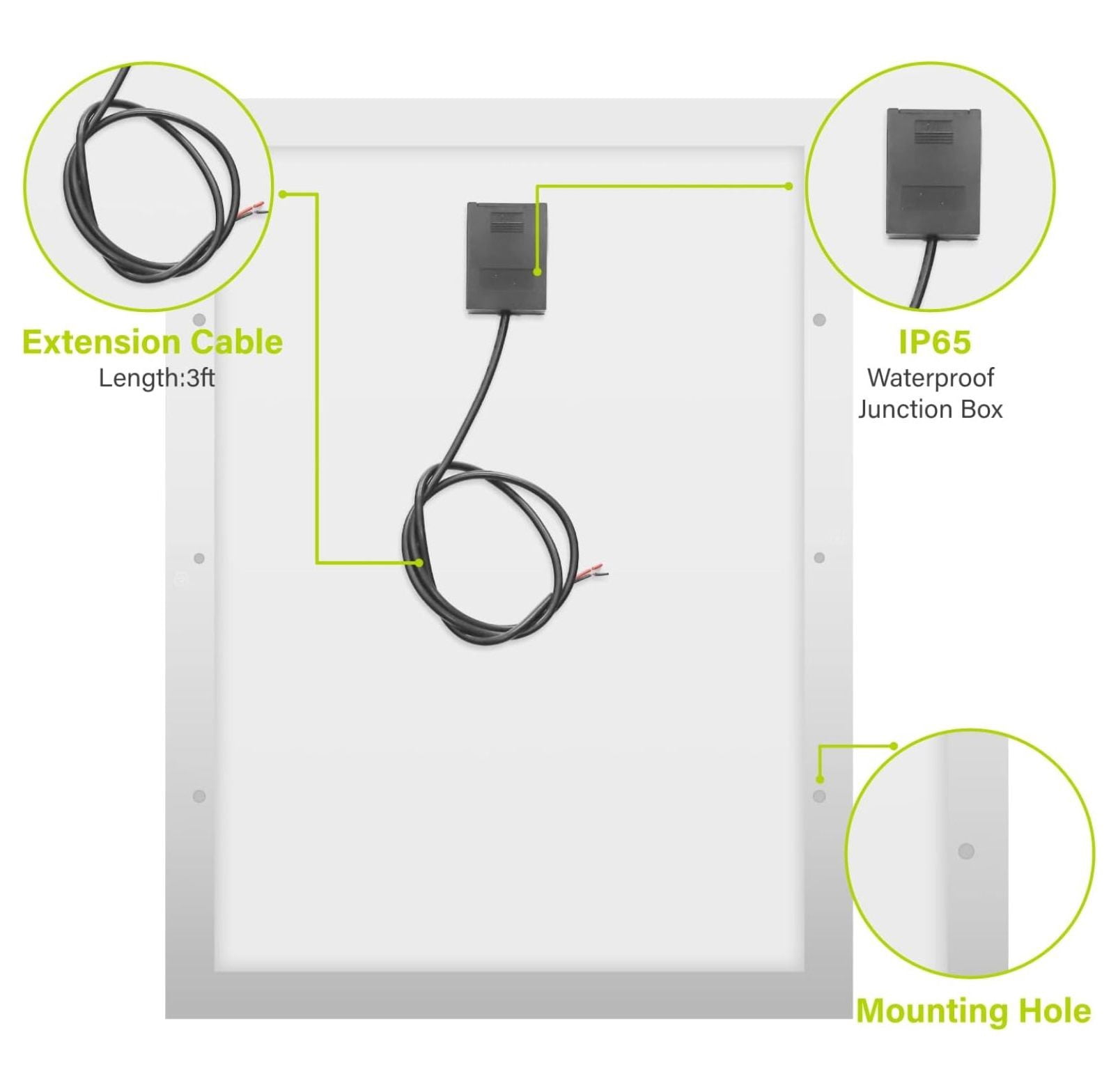

• 【Easy Installation】Pre-attached 3ft bare ends wire, pre-drilled mounting holes on the frame allow for easy and quick install.

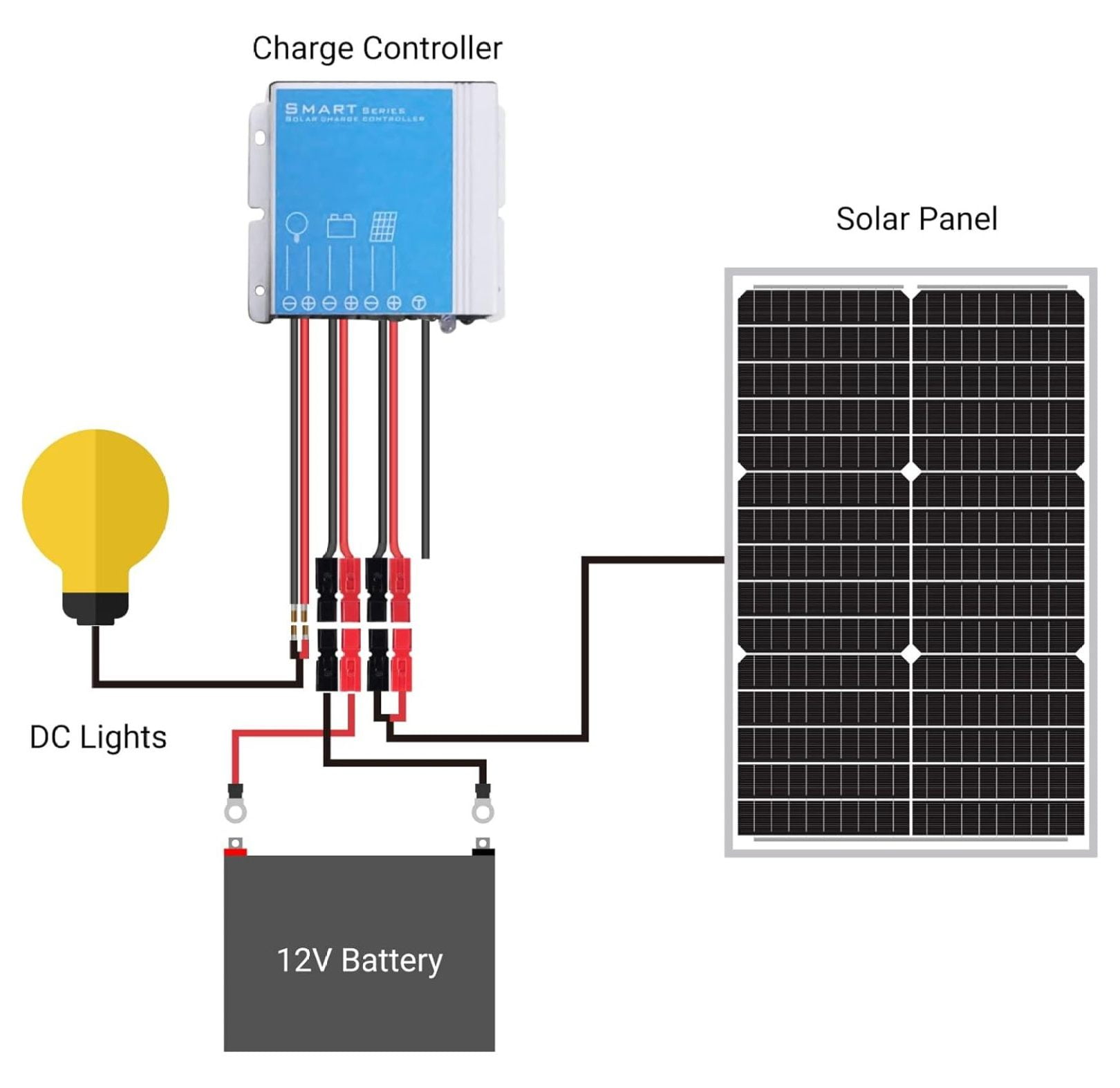

• 【Versatile】Perfect for 12V off-grid applications, such as gate openers, fences, security cameras, lights. Charging the battery of boats, RVs, , etc.
• 【After-sales Service】 With a 2-year material and parts workmanship assurance.10 years of power output is greater than 90%, of power output is greater than 80%.
